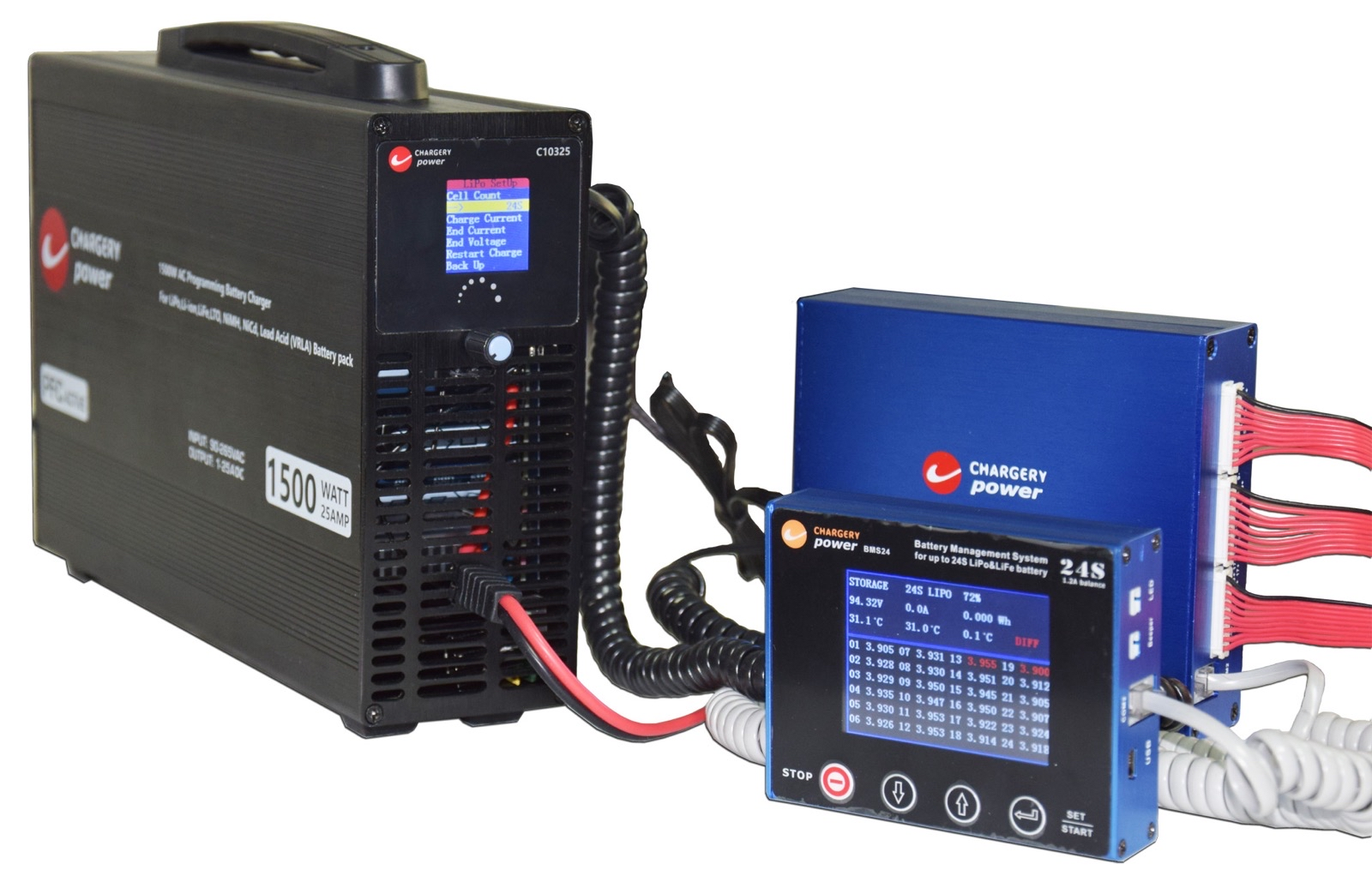

Batteriladdare kit - Chargery power, C10325 samt BMS24T

C10325 is a high voltage battery charger, programmed battery type, cell count, charge current, charge terminal voltage for LI-ION, LIPO, LIFE, LiTo, NIMH/NICD, and Lead Acid battery.

Optimization of system design make sure the 1500W charger consume less than 1W at idel mode. TFT color LCD is easy to display clearly voltage, current, capacity charged and internal temperature.

One button design easy to operate and control the charge process.

Although C10325 charge any battery at 25A 1500W, the efficiency is still up to 94% at a smaller size.

Chargery BMS24-T is a special designed for Lipo-Life battery pack ideal for energy storage application and electric vehicle including E-motorcycle, E-Scooter, Golf Cart ect. The unit can measure or detect battery voltage, cells voltage, charge and discharge current, battery temperature and SOC (state of charge), independent display with TFT color LCD.

– BMS function can be set to (Balance only during charging, Balance During Discharging or Balance all the time)

– BMS can be power by battery pack from 8cells up (power draw from all cells) or by external power supply (15v-60v)

– Alarm and trigger can be set within BMS to control relay to shut off overcharge or over discharge or imbalance in cells.

– BMS can communicate with Chargery charger such as model C10325

TFT LCD screen provides rich information including current, voltage, power, capacity, battery status, SOC and temperature and so on.

BMS24T features a maximal safety protection, within the range parameters can be setup, BMS24T will alarm and cutoff charge or discharge according to users’ setup, out of range of parameters, and trigged absolute maximum ratings BMS24T will force to cutoff charge or discharge to prevent the battery from fire.
