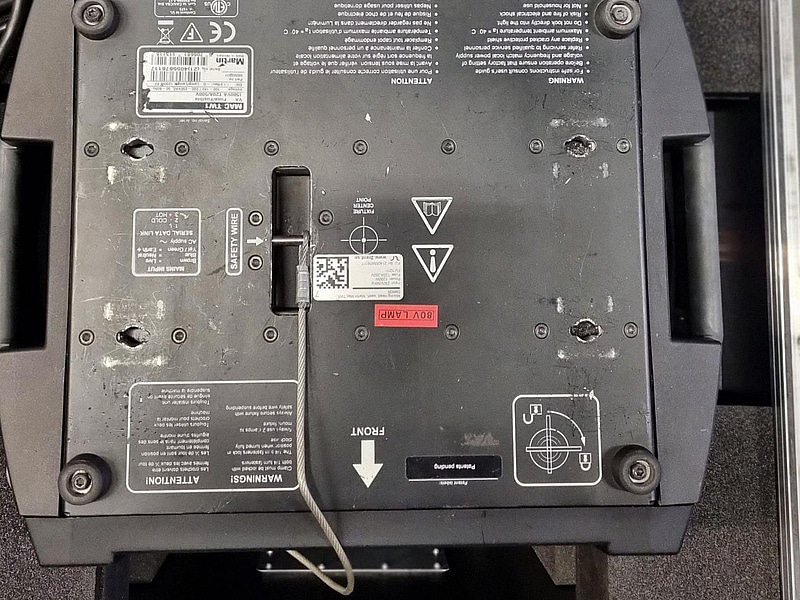

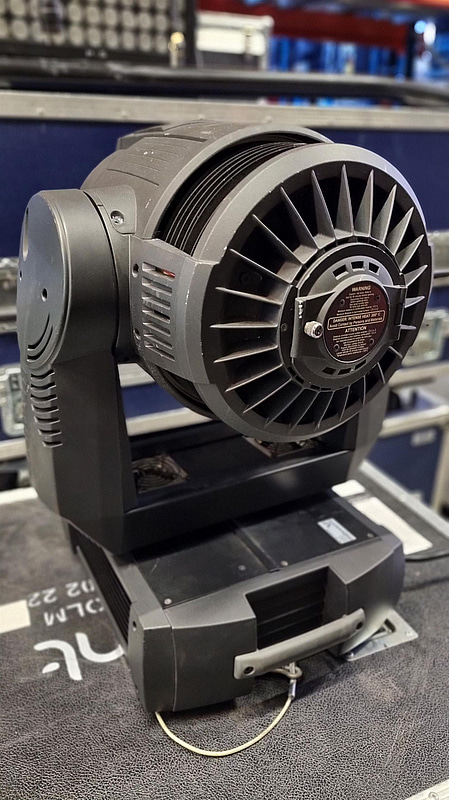

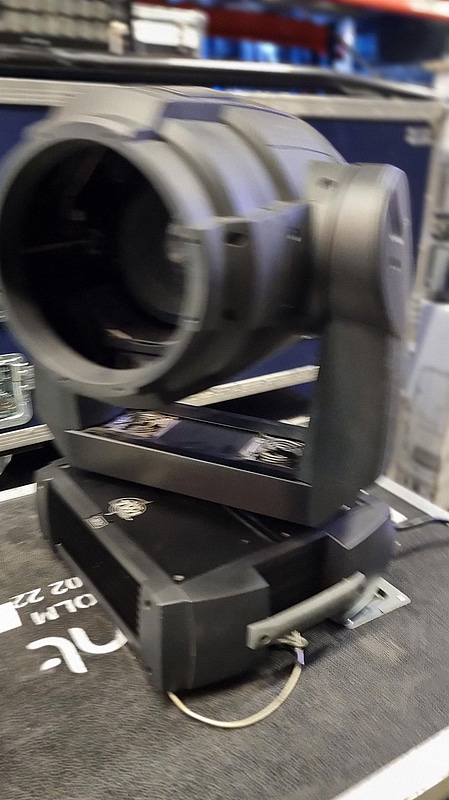

2 x Moving Head, Wash, Martin Mac TW1, 80V, DMX35, i case

Begagnade Martin Mac TW1

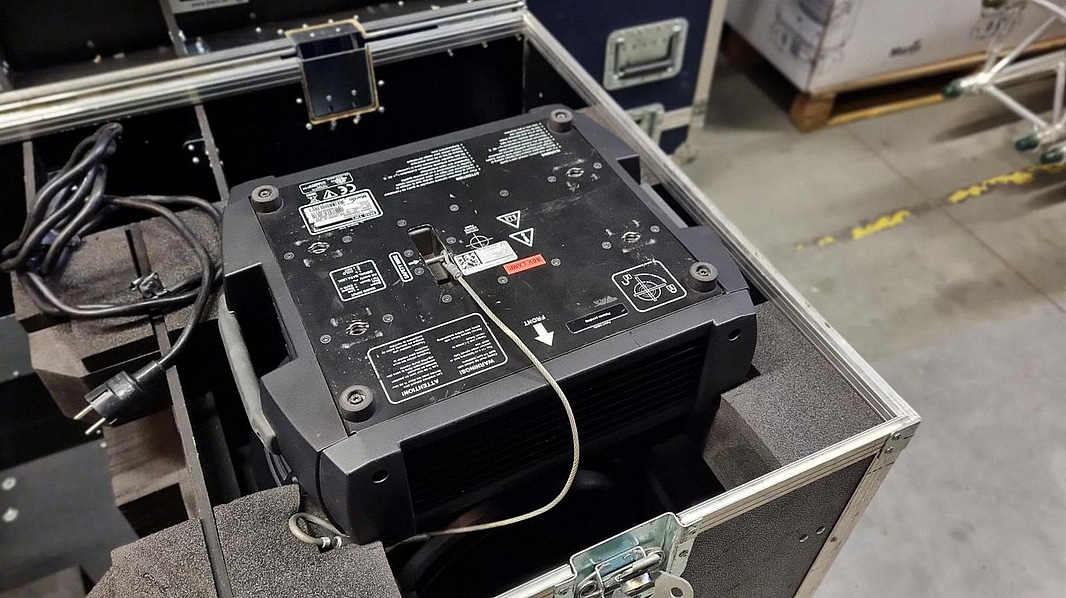

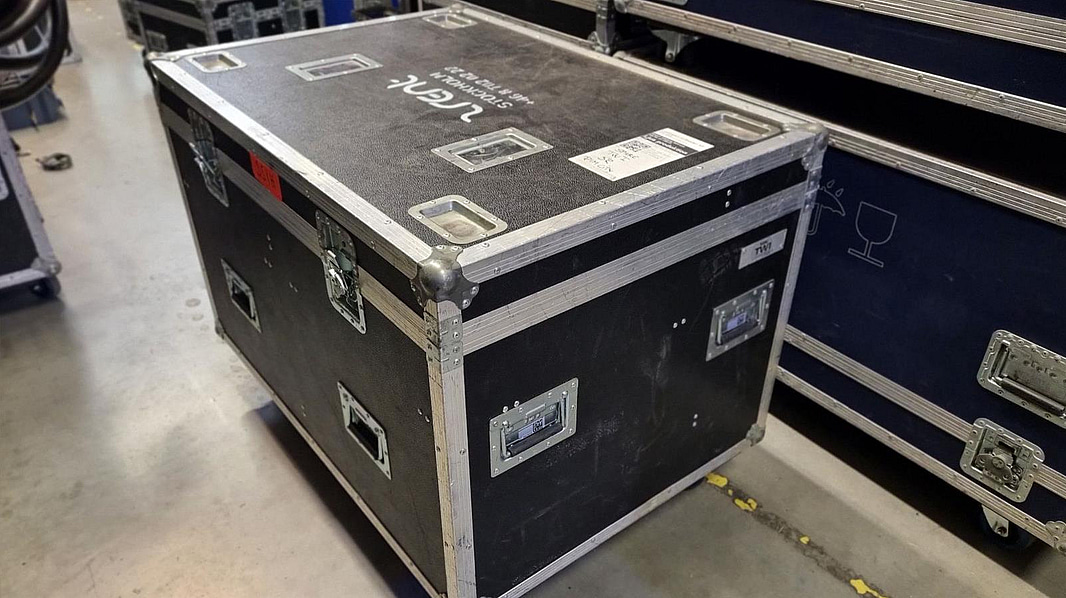

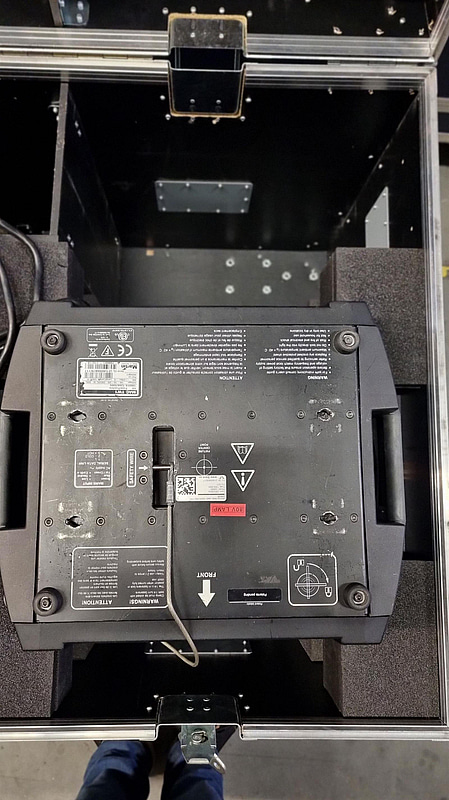

2 armaturer och ett case. (Hakjärn och säkerhetswire ingår ej)

MAC TW1™ Specifications

The MAC TW1 is a powerful, silent tungsten wash light with a clean, even, soft-edged beam, a motorized zoom, exceptional and rich CMY color mixing and can be run from the built-in dimmer or from an external dimmer.

Features
Total output up to 14200 lumens
CMY color mixing system
Motorized zoom
Fresnel (included), narrow, and multi array
Internal & external electronic dimming plus mechanical dimming
Rapid strobe effects (up to 10 Hz)
Patented very low-noise cooling
Various front accessories for theatre, television and film applications
80 V dimmer for universal operating voltage

Physical
Length: 454 mm (17.9 in.)
Width: 362 mm (14.3 in.)
Height: 709 mm (27.9 in.), head straight up
Weight: 27.4 kg (60.4 lbs.), 80 V dimmer model

Lamp
Type: 1200 W tungsten halogen
Approved lamps: Philips 1200/115, 1200/230 or 1200/240 FastFit, Philips Hi-Brite 1200/80 FastFit
Socket: PGJX-50
Lamp voltage must match internal or external dimmer output voltage

Dynamic Effects
Color mixing: CMY, independently variable 0 - 100%
Electronic dimming: Multi-voltage IGBT and 80 V internal dimmer options, 'plug and play' external dimming
Mechanical dimmer: 0 - 100%
Shutter: Strobe effect up to 10 Hz, random strobe
Zoom: Narrow 14.5° - 27°, Standard 20° - 41°, Very wide 97° - 105°, 1/10 peak angles, 80 V lamp
Pan: 540°
Tilt: 242°

Control and Programming
DMX channels: 14/20
Setting and addressing: Control panel with display
16-bit control: CMY, mechanical dimmer, electronic dimmer, zoom, pan & tilt
Movement control options: Tracking and vector
Dimming curve options: Various available
Protocol: USITT DMX512-A
Receiver: Opto-isolated RS-485
Firmware update: Serial upload via DMX link

Dimming System Options
Internal 80 V dimmer: 0 - 100%, 8- or 16-bit dimming resolution, controlled via DMX

Construction
Color(s): Black
Housing: Magnesium alloy, UV-resistant fiber-reinforced composite
Reflector: Glass, cold light
Protection rating: IP20

Installation
Orientation: Any
Mounting points: 2 pairs of 1/4-turn locks

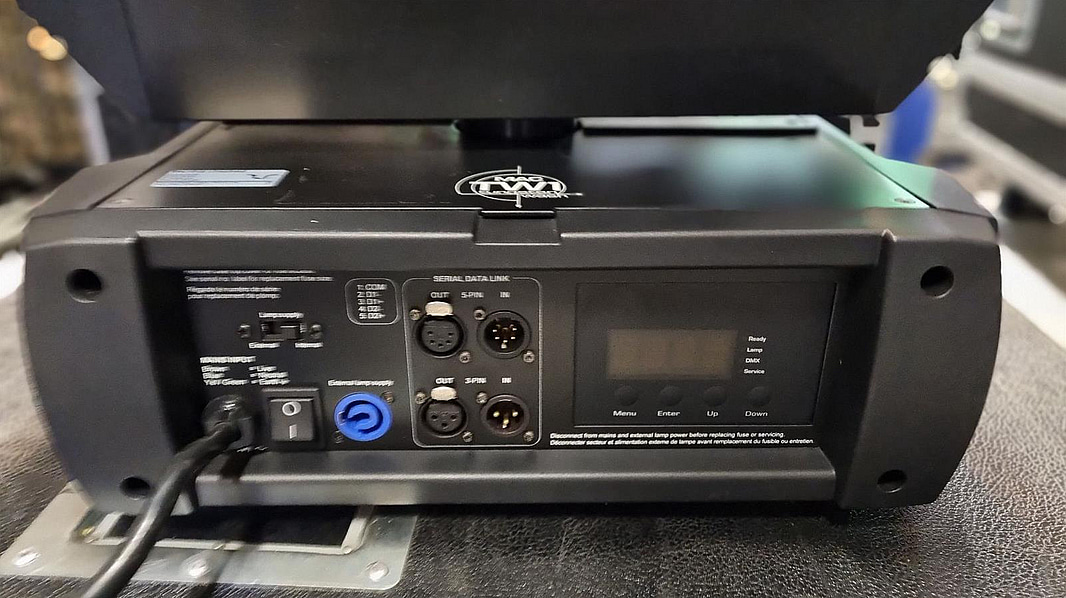

Connections
AC power input: 3 m (9.8 ft.) integral cable without power plug
DMX data in/out: 3-pin and 5-pin locking XLR
External dimmer: Neutrik PowerCon

Electrical
AC power: 100-120/200-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 20 AT (slow blow)

Garanti: 48 timmar
