2 x Moving Head, Wash, Martin Mac TW1, 80V, DMX35, i case

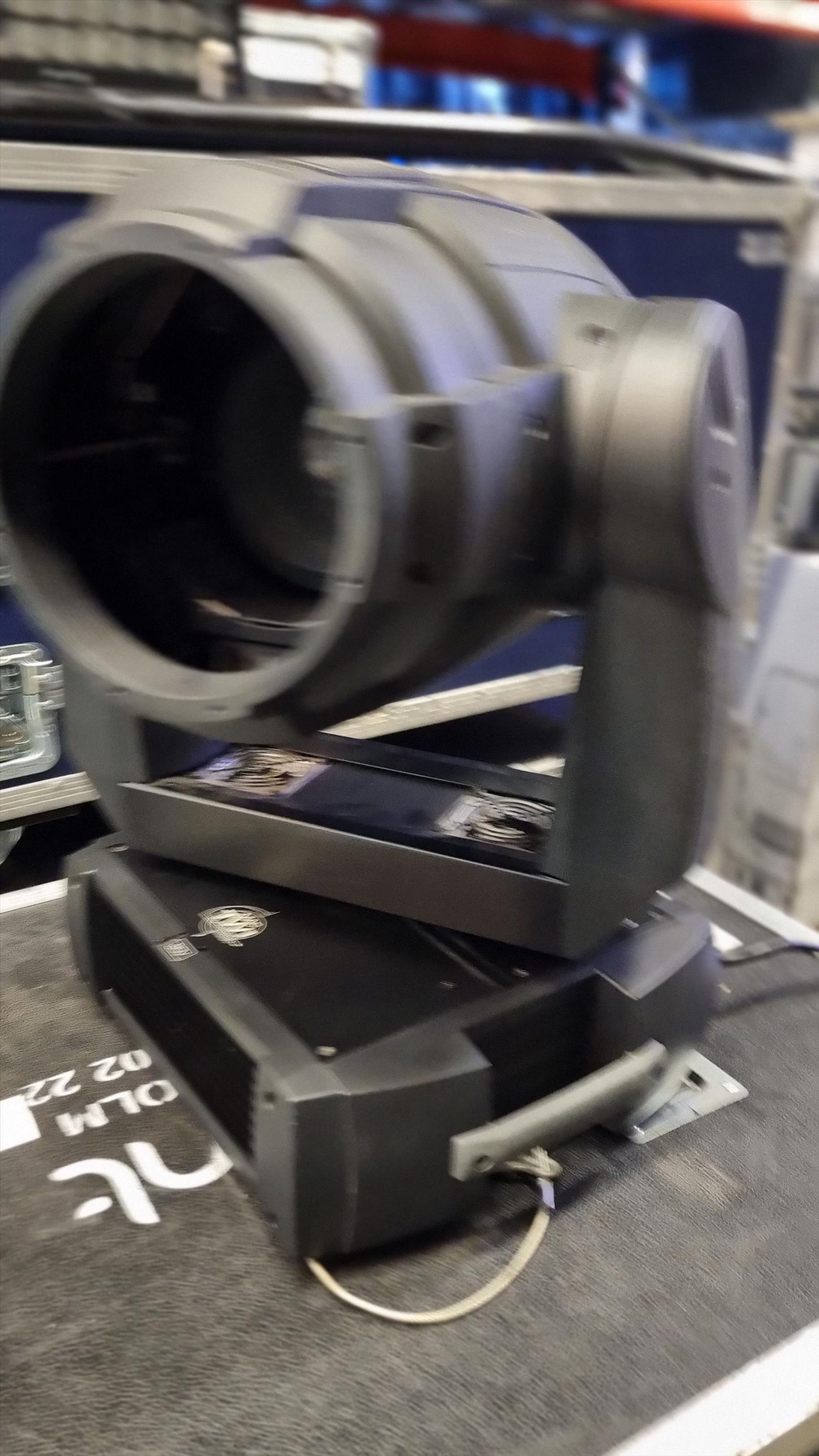

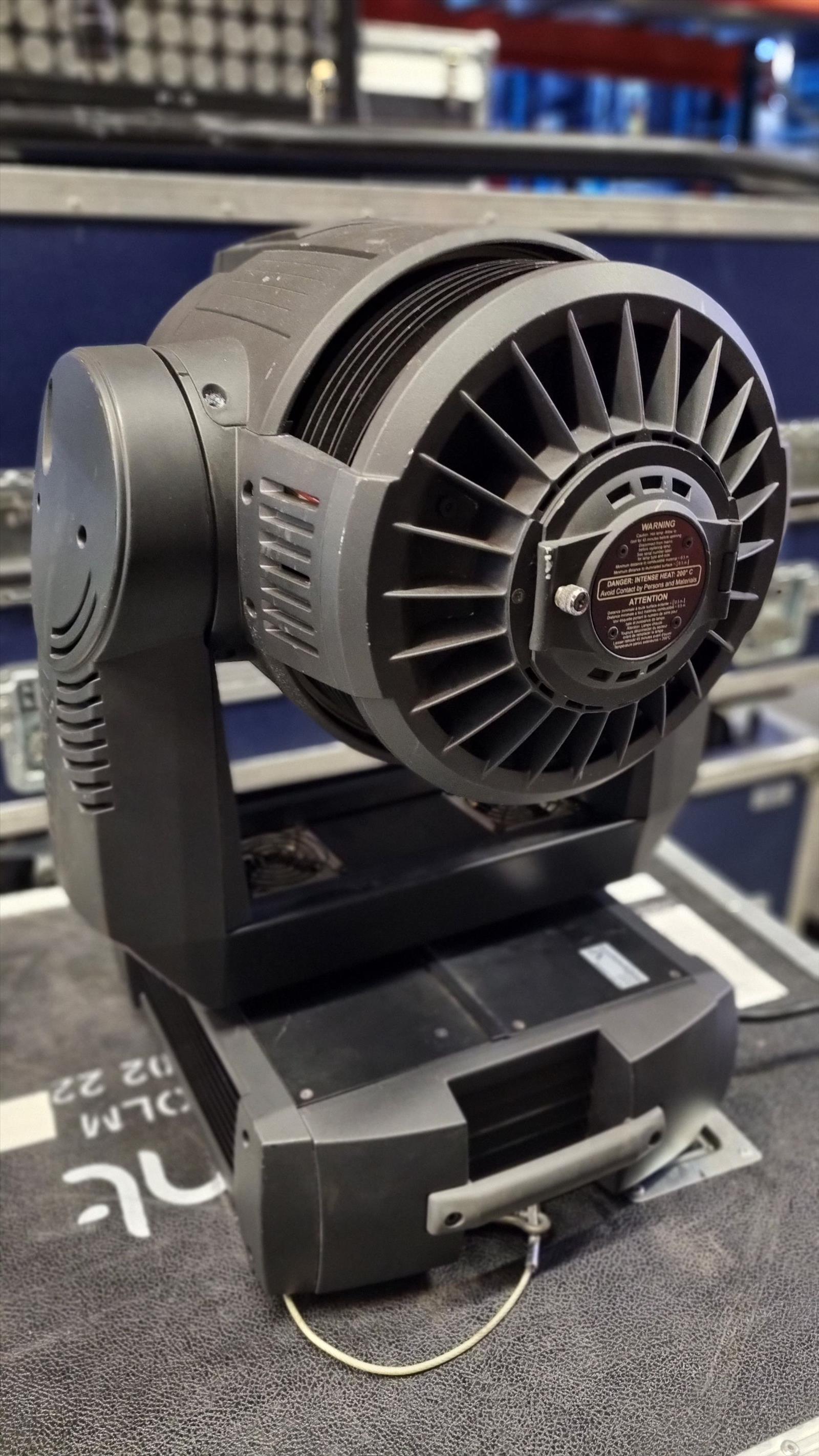

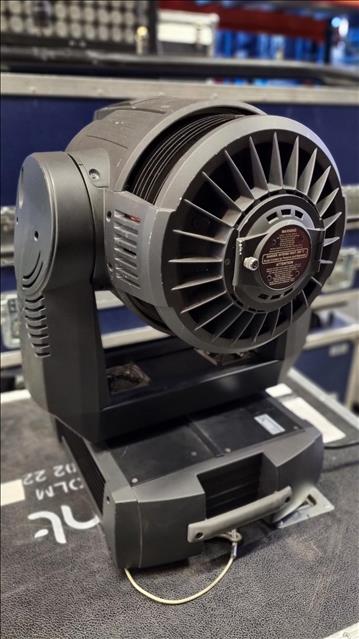

Begagnade Martin Mac TW1

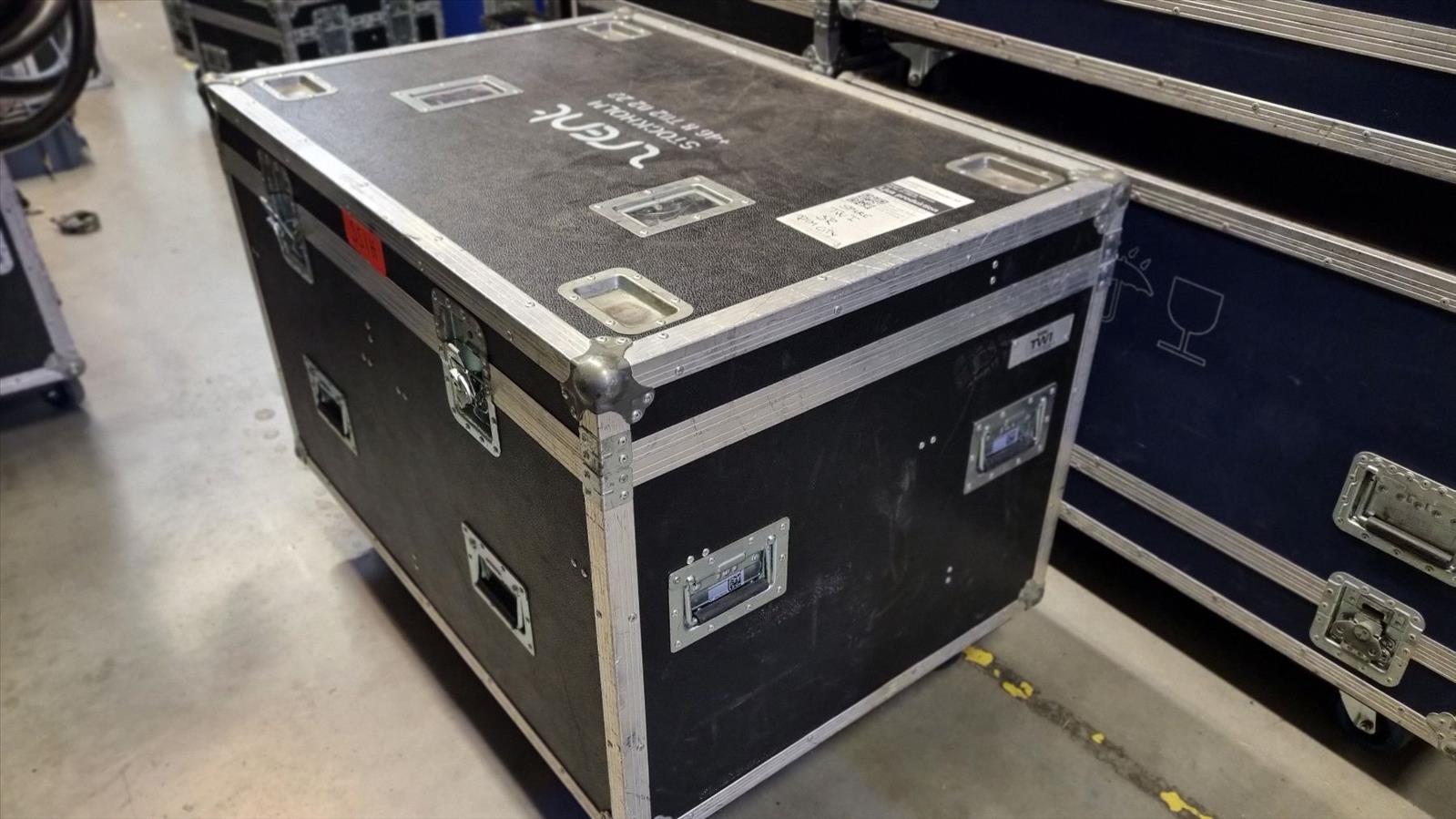

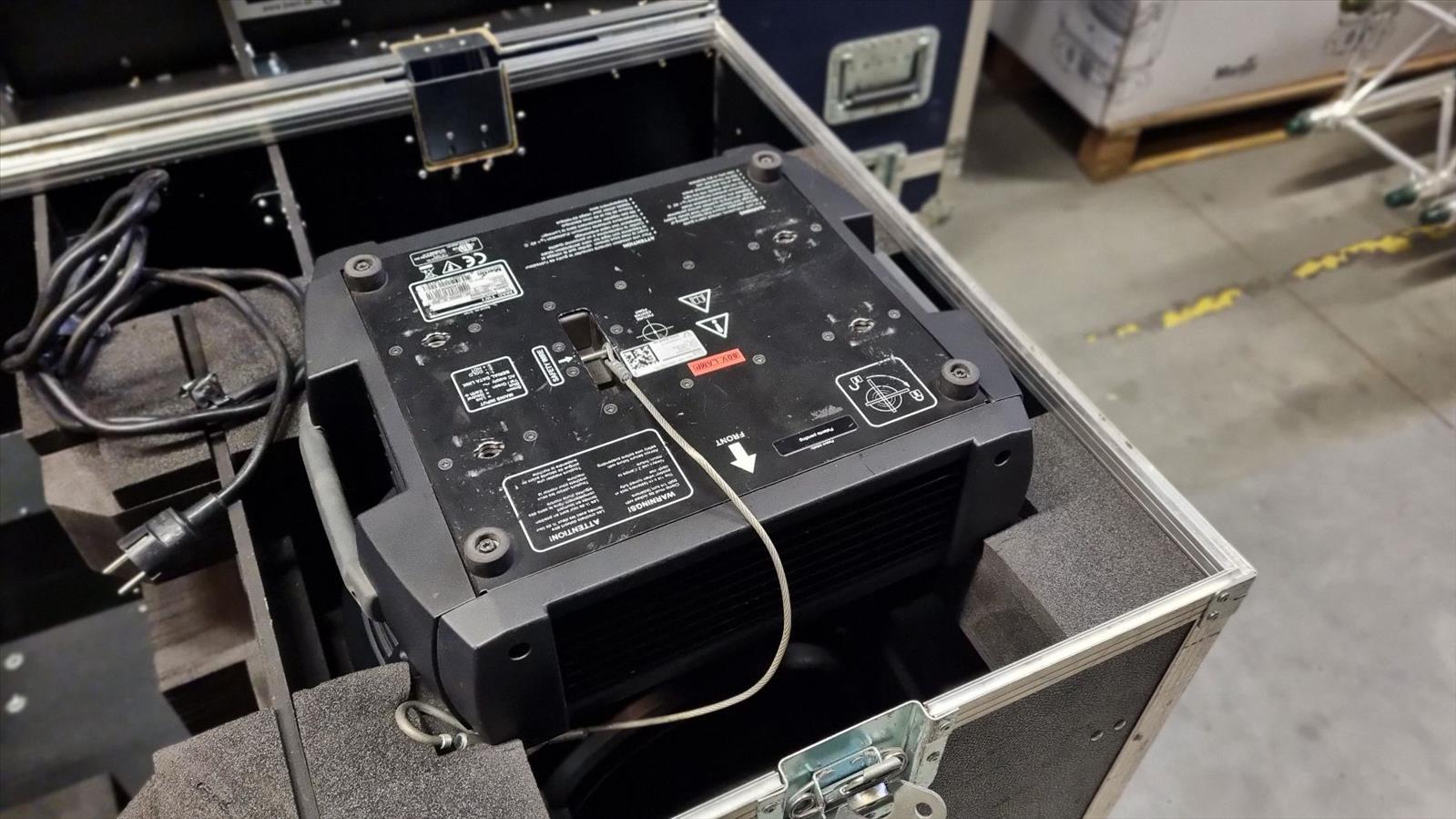

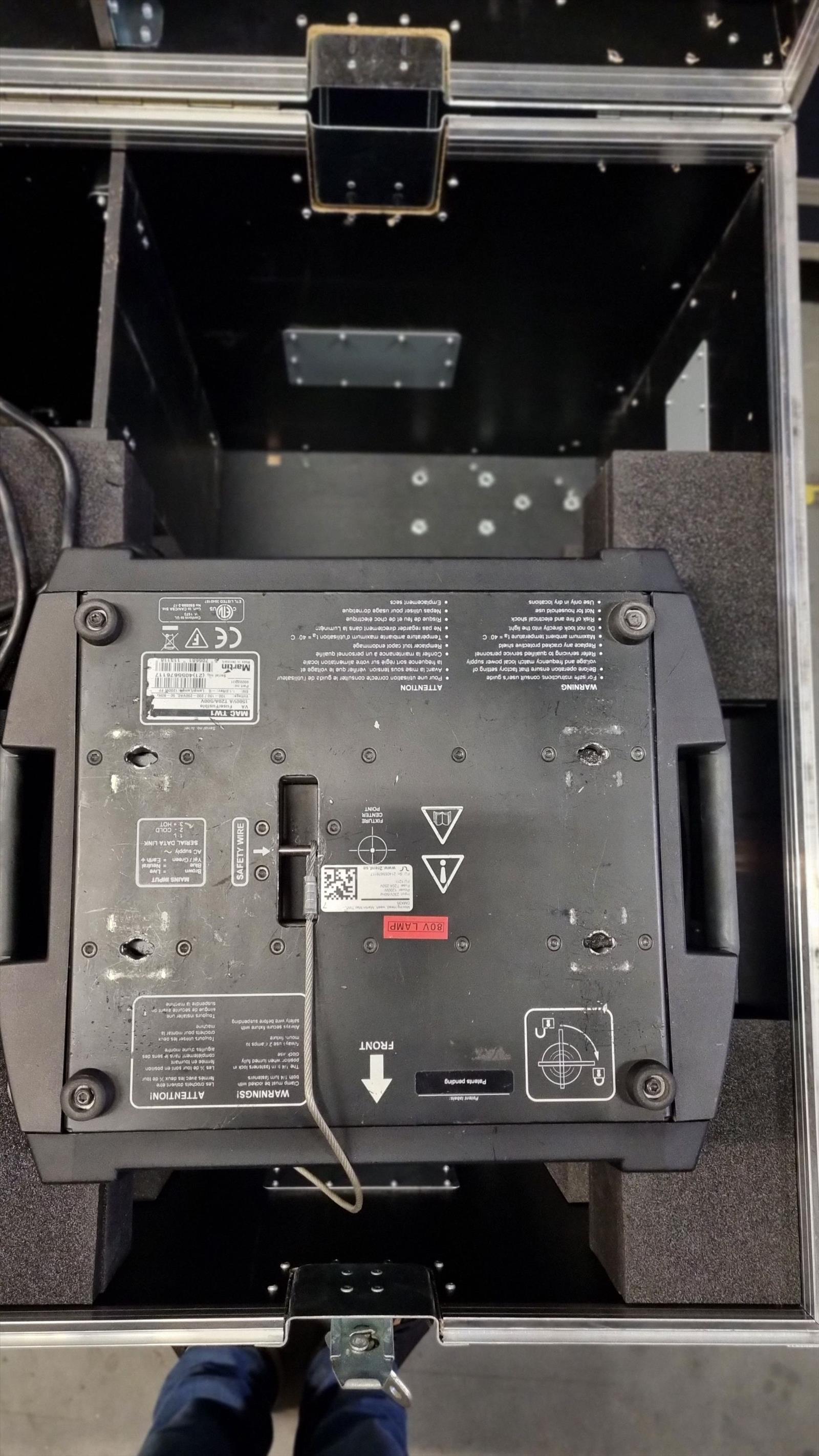

2 armaturer och ett case. (Hakjärn och säkerhetswire ingår ej)

MAC TW1™ Specifications

The MAC TW1 is a powerful, silent tungsten wash light with a clean, even, soft-edged beam, a motorized zoom, exceptional and rich CMY color mixing and can be run from the built-in dimmer or from an external dimmer.

Features

Total output up to 14200 lumens

CMY color mixing system

Motorized zoom

Fresnel (included), narrow, and multi array

Internal & external electronic dimming plus mechanical dimming

Rapid strobe effects (up to 10 Hz)

Patented very low-noise cooling

Various front accessories for theatre, television and film applications

80 V dimmer for universal operating voltage

Physical

Length: 454 mm (17.9 in.)

Width: 362 mm (14.3 in.)

Height: 709 mm (27.9 in.), head straight up

Weight: 27.4 kg (60.4 lbs.), 80 V dimmer model

Lamp

Type: 1200 W tungsten halogen

Approved lamps: Philips 1200/115, 1200/230 or 1200/240 FastFit, Philips Hi-Brite 1200/80 FastFit

Socket: PGJX-50

Lamp voltage must match internal or external dimmer output voltage

Dynamic Effects

Color mixing: CMY, independently variable 0 - 100%

Electronic dimming: Multi-voltage IGBT and 80 V internal dimmer options, 'plug and play' external dimming

Mechanical dimmer: 0 - 100%

Shutter: Strobe effect up to 10 Hz, random strobe

Zoom: Narrow 14.5° - 27°, Standard 20° - 41°, Very wide 97° - 105°, 1/10 peak angles, 80 V lamp

Pan: 540°

Tilt: 242°

Control and Programming

DMX channels: 14/20

Setting and addressing: Control panel with display

16-bit control: CMY, mechanical dimmer, electronic dimmer, zoom, pan & tilt

Movement control options: Tracking and vector

Dimming curve options: Various available

Protocol: USITT DMX512-A

Receiver: Opto-isolated RS-485

Firmware update: Serial upload via DMX link

Dimming System Options

Internal 80 V dimmer: 0 - 100%, 8- or 16-bit dimming resolution, controlled via DMX

Construction

Color(s): Black

Housing: Magnesium alloy, UV-resistant fiber-reinforced composite

Reflector: Glass, cold light

Protection rating: IP20

Installation

Orientation: Any

Mounting points: 2 pairs of 1/4-turn locks

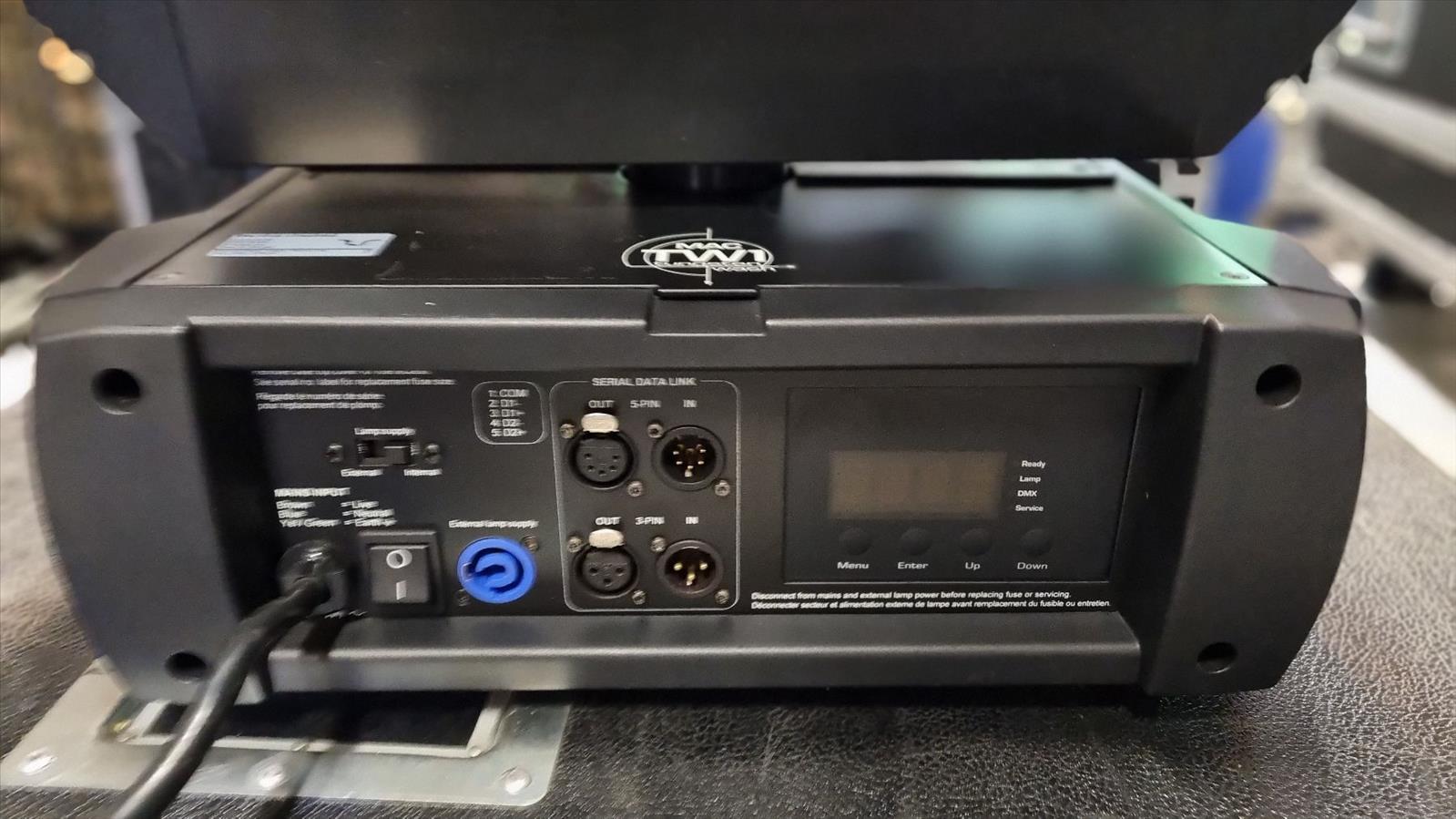

Connections

AC power input: 3 m (9.8 ft.) integral cable without power plug

DMX data in/out: 3-pin and 5-pin locking XLR

External dimmer: Neutrik PowerCon

Electrical

AC power: 100-120/200-240 V nominal, 50/60 Hz

Power supply unit: Auto-ranging electronic switch-mode

Main fuse: 20 AT (slow blow)

Garanti: 48 timmar
