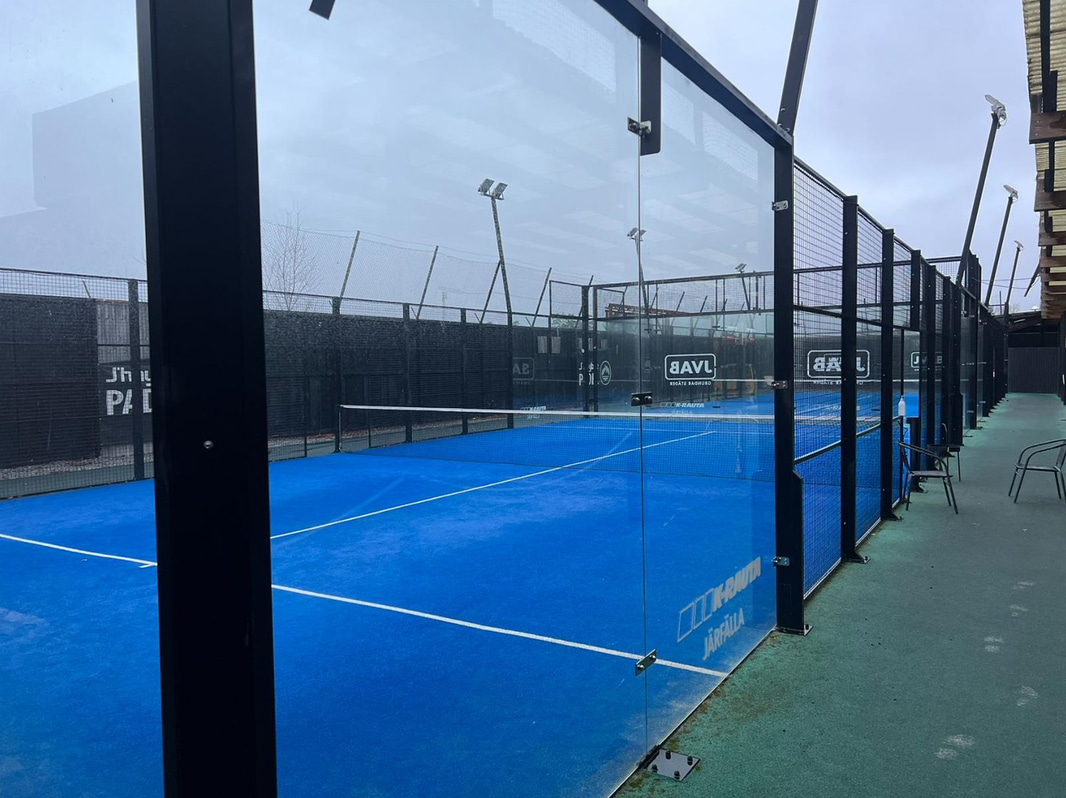

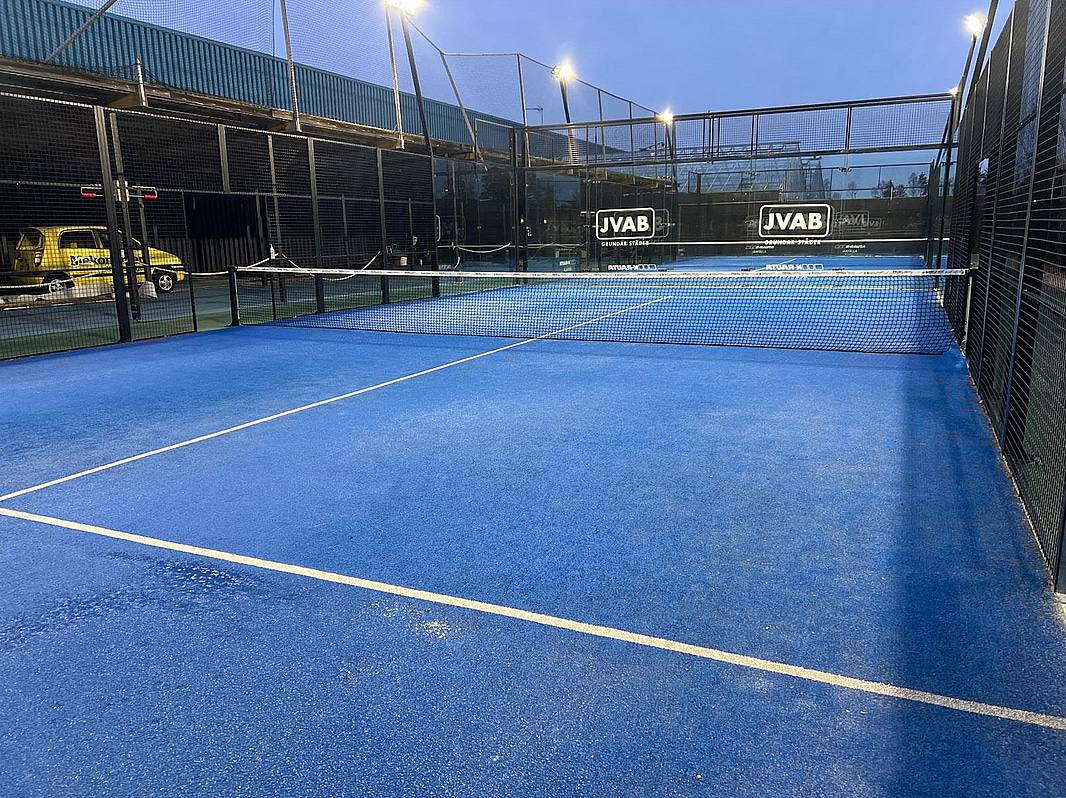

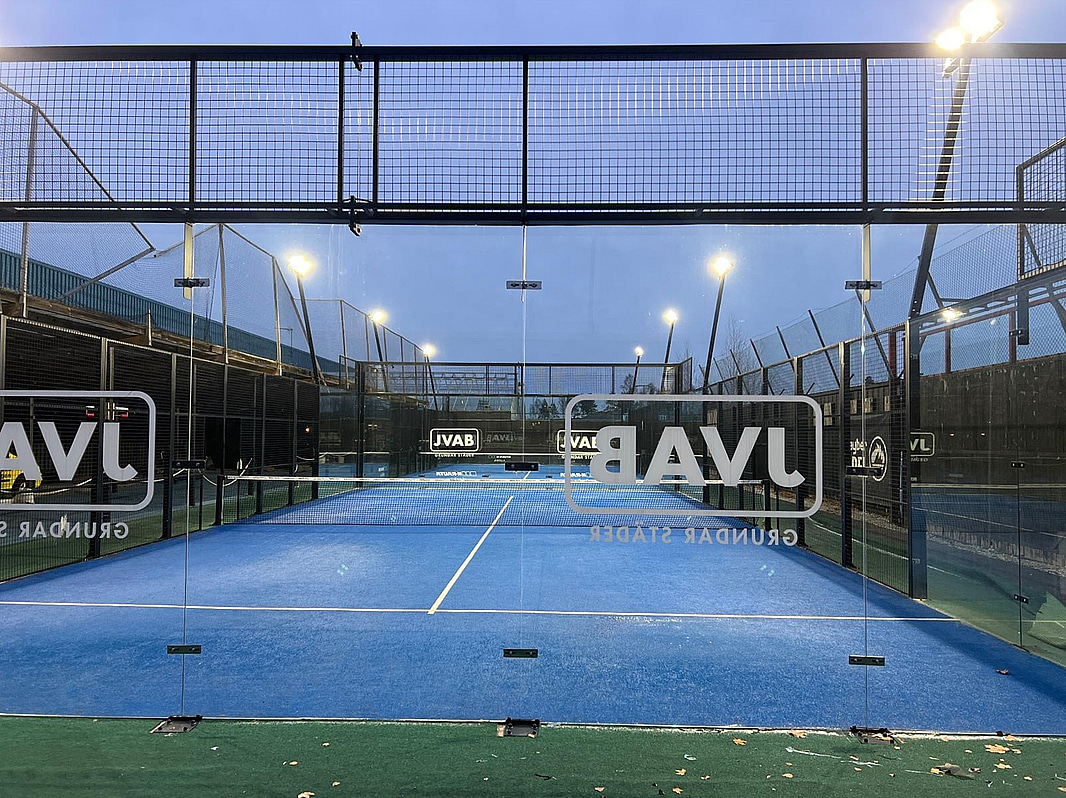

J'hayber - Padelbana dubbel utomhus panorama 10x20m B

Padelbana från märket J'hayber.

Köpt och installerad sommaren 2020.

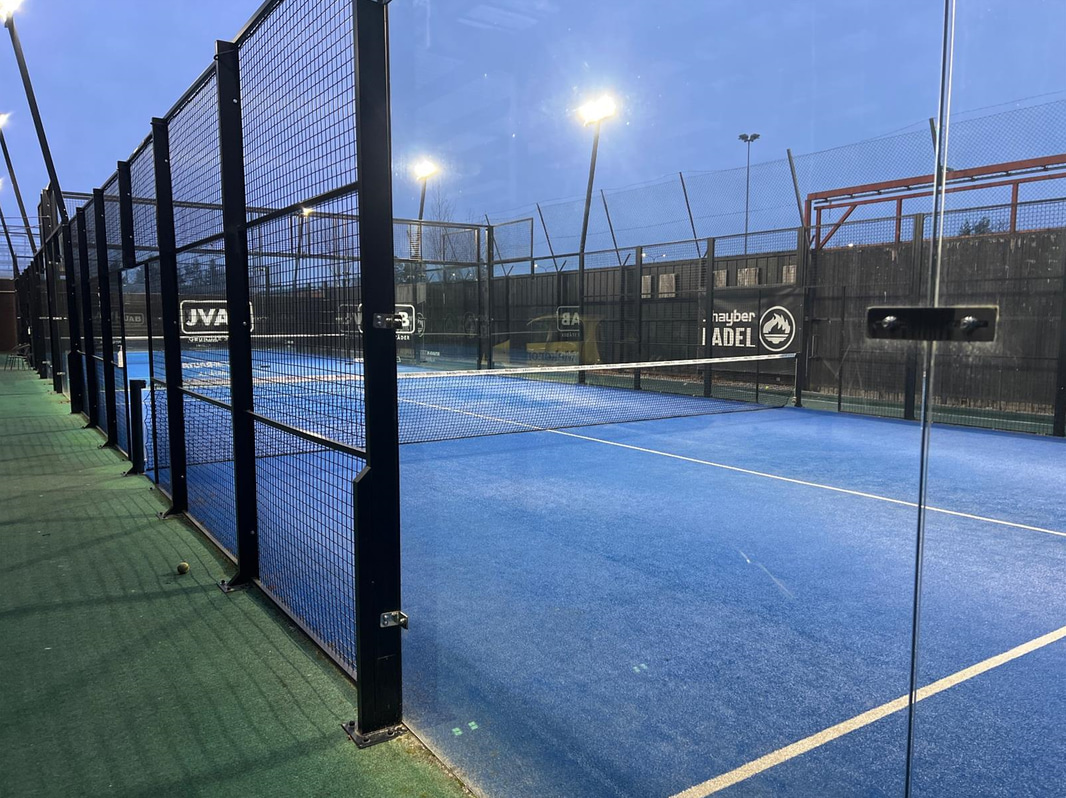

METALLIC ENCLOSURE

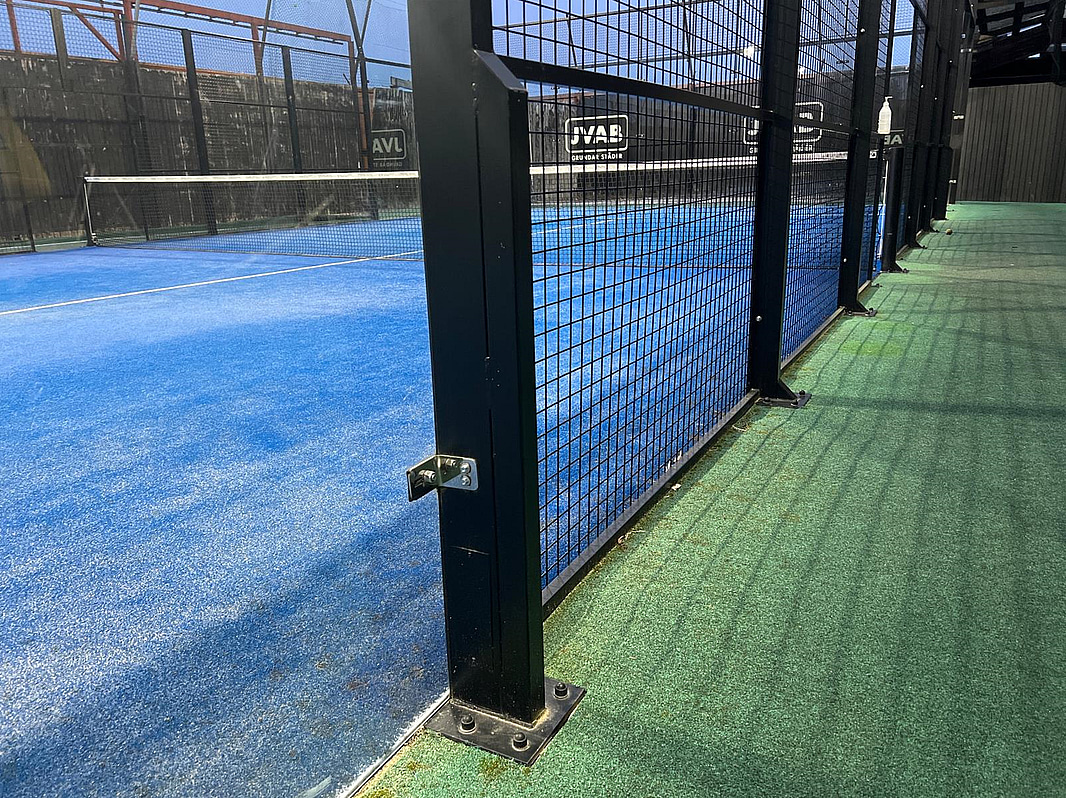

 Zinc-plated starter plates, with rounded edges and reinforcement brackets in pillars

200x200x10 mm thick, anchored by four Index M-12x14x100

 Metallic portico of structural tube of 150x150x5 mm, without pillars in the corners..

 8 structural tube pillars of 100x50x2mm for clamping electrowelded mesh frames.

 8 frames of 3000x2000mm made by 50x50x4mm electrowelded mesh and framed with

galvanized steelsheet, double reinforcement to 1m and 2m in mesh with 40x20mm

profile to prevent deformations.

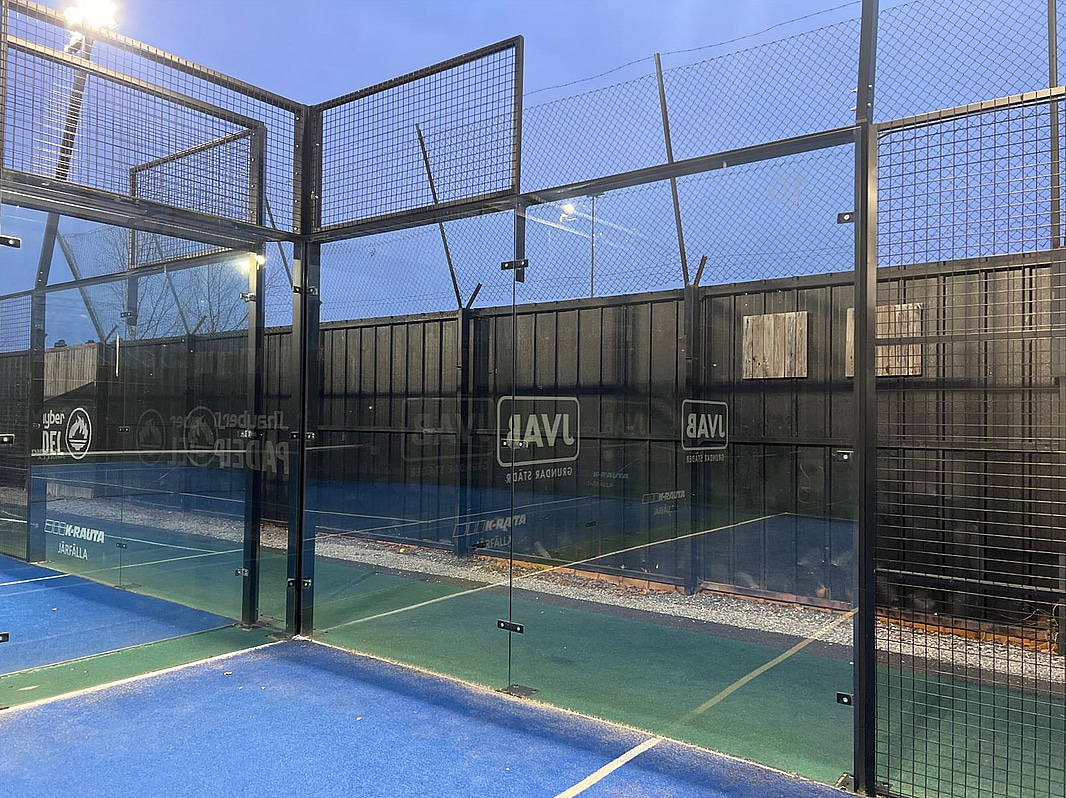

 4 Frames of 3000x2000mm, with hollow for double side access to track made with

50x50x4mm electrowelded mesh and framed with galvanized steelsheet, double

reinforcement to 1m and 2m in the mesh with 40x20mm profile to avoid deformations..

 14 Frames 2000x1000mm, top glass with 50x50x4mm electrowelded mesh and framed..

 Double side access without doors.

 Metal portico with primer treatment and baked lacquer with thermosetting epoxypolyester

paint polymerized at 200 ºC, long-lasting coating, optimal for saltpeter, sand

and sunlight (anti-corrosion).

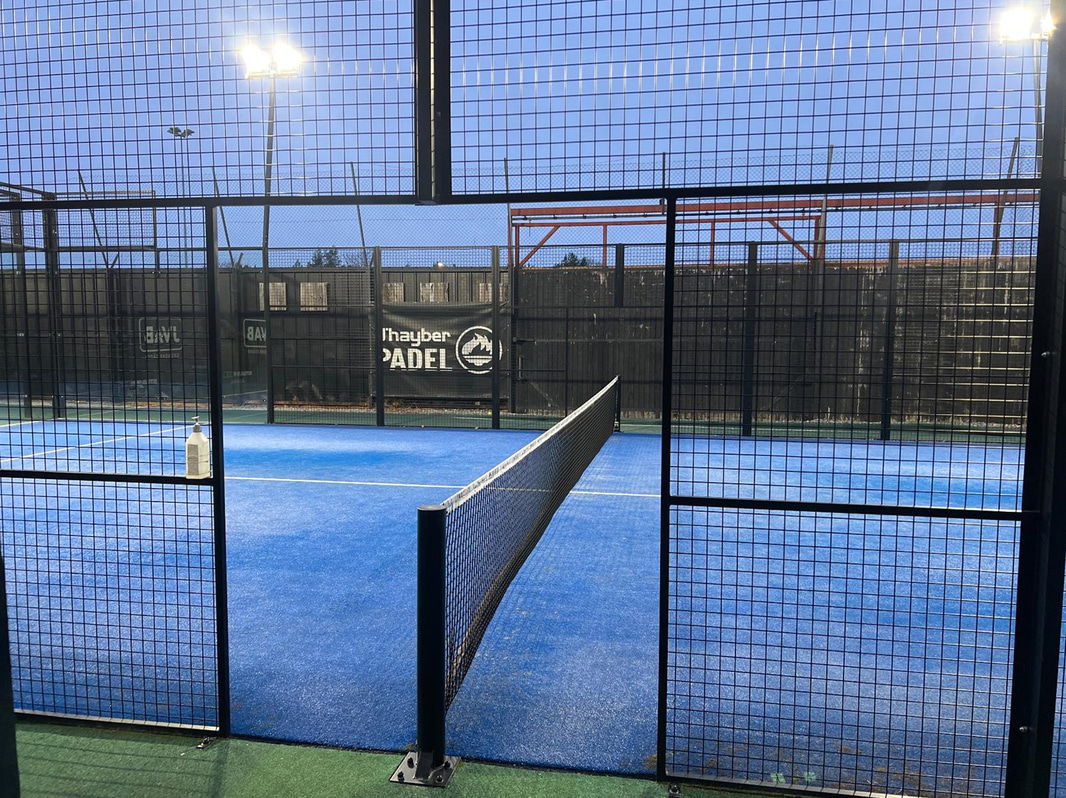

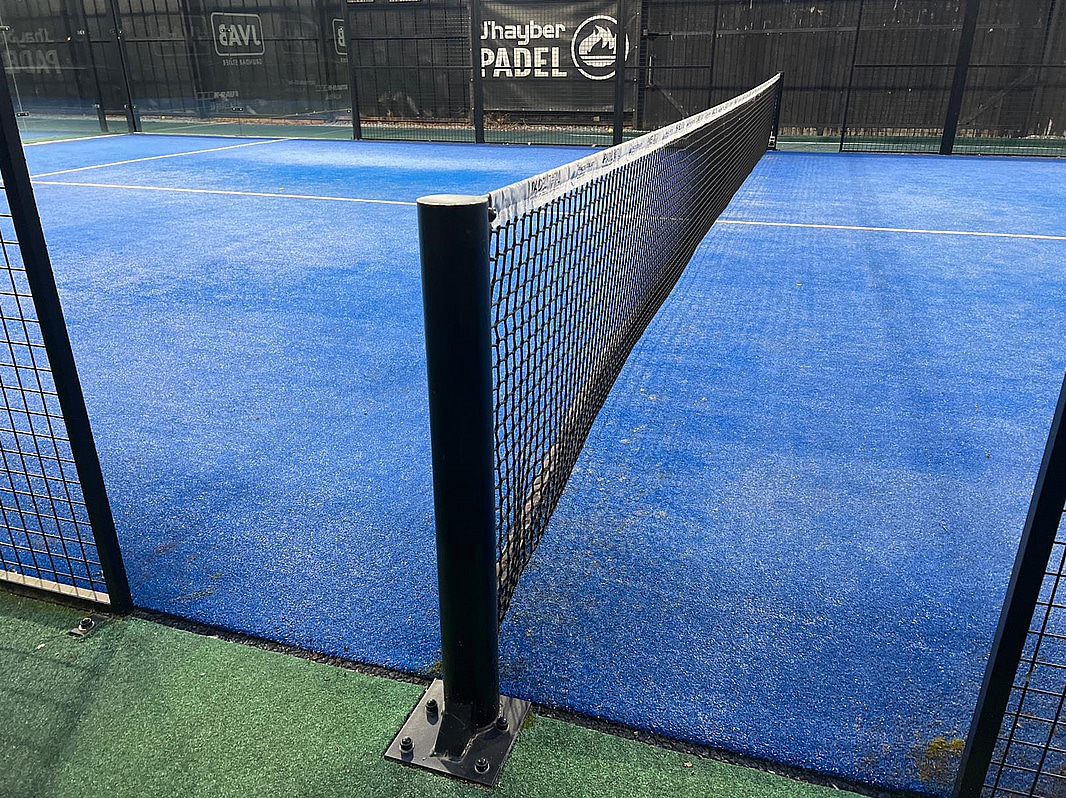

 Red professional play made of 3.5 mm thick black polypropylene, 43x43 mm mesh with

anti-UV treatment, net tension cable in galvanized steel with 3.5 mm plastic coating,

textile tape, anchored to pole with tensioning systems with tensioning systems.

 The entire metal structure forming a single plane, even with respect to the glass, thus

avoiding possible injuries to players and strange boats in the Ball.

 The entire metal structure of the enclosure according to current regulatory measures,

approved by the Spanish paddle federation.

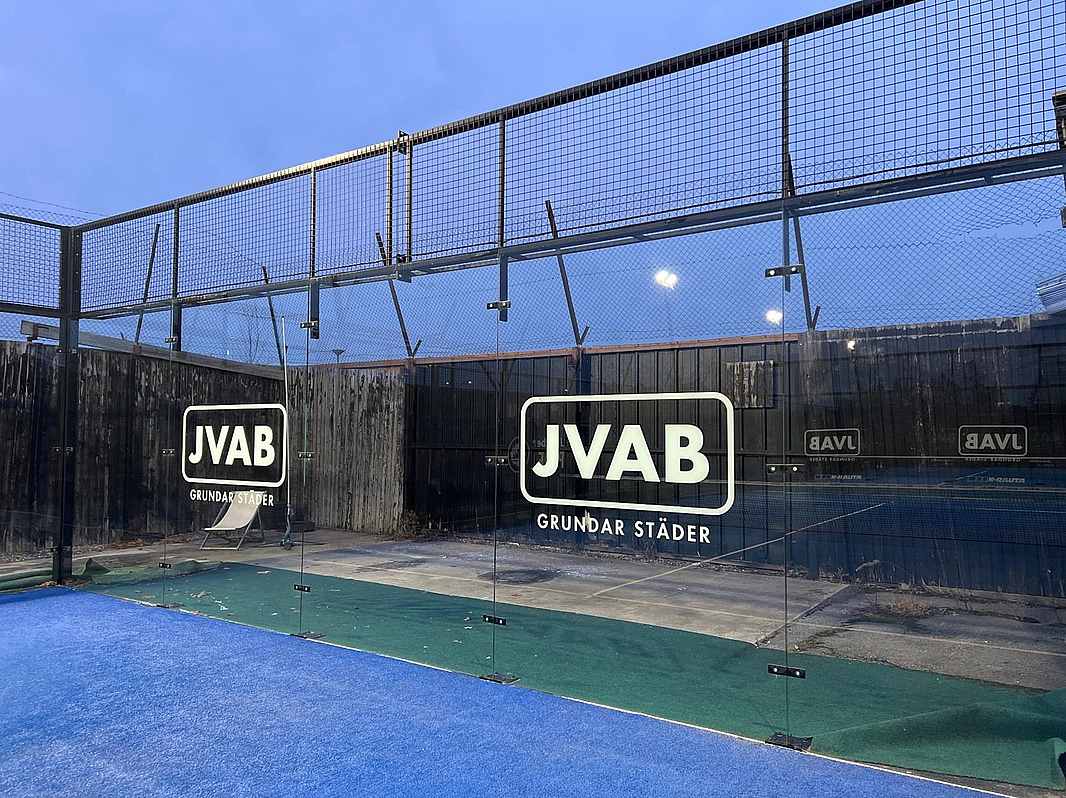

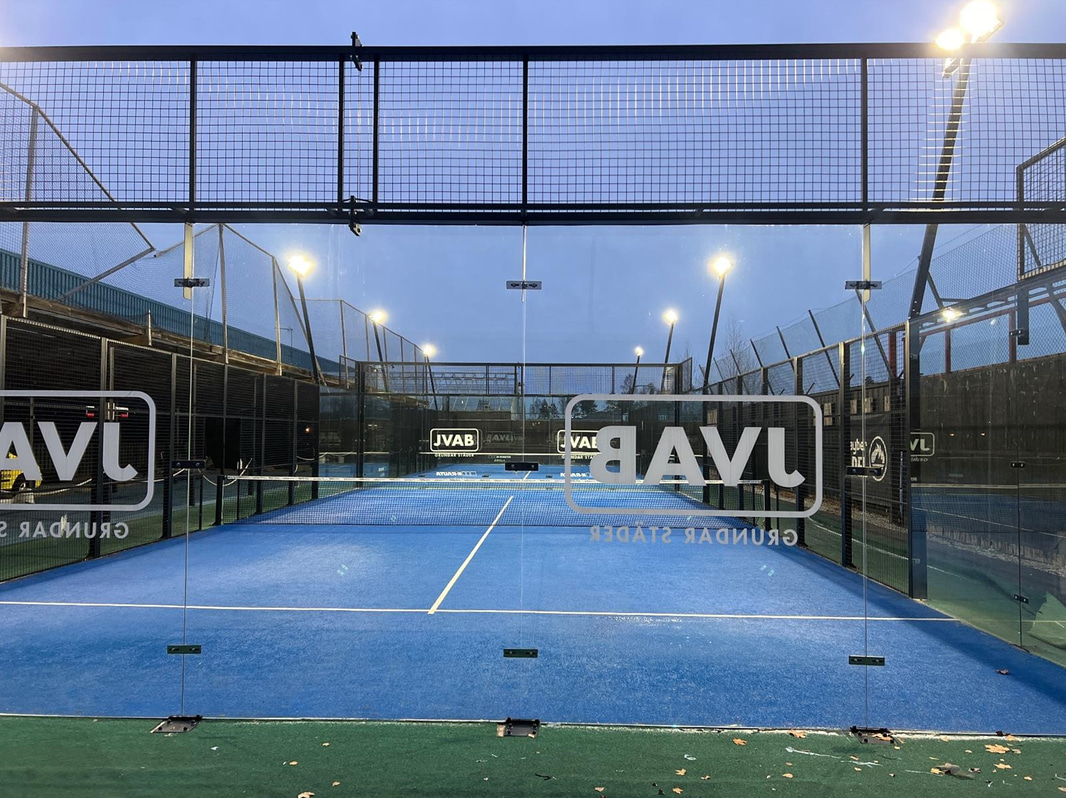

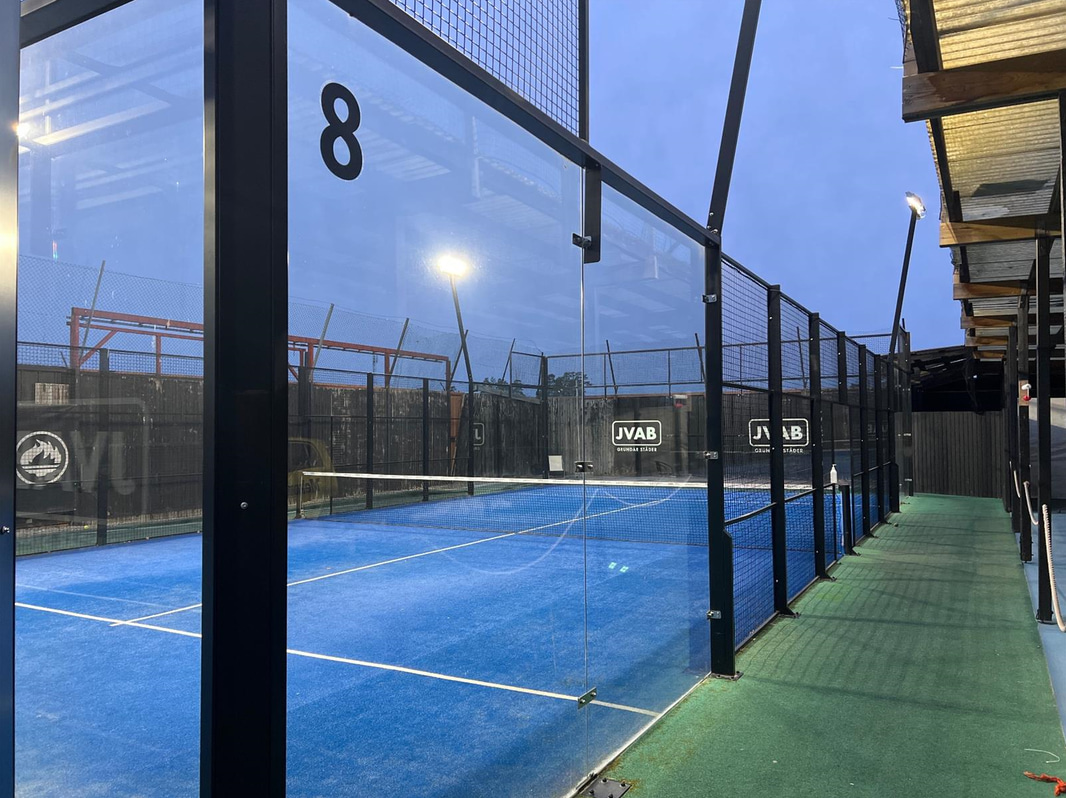

CRYSTALS

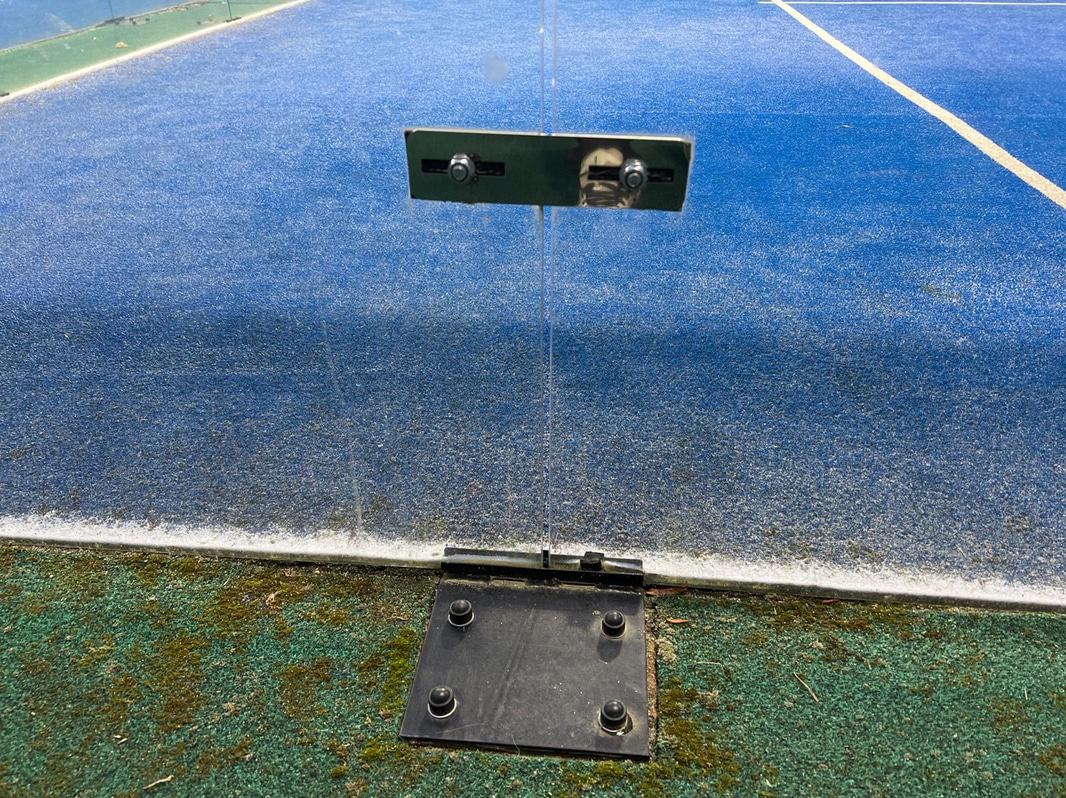

Supply 18 crystals SECURIT . 2995x1995 mm and flat polished edges and countersink drill, in

one piece, protected with 5mm thick anti-vibration neoprene foam at the junction with the

frames, stainless steel screws, subjected to a heat treatment of reinforcement, Temple process

and approved, with a thickness of 12 mm. Colorless.

200 M2 ARTIFICIAL CESPED, APPROVED BY THE EFF

Textured color Blue and mark in white.

Begagnat skick utan kända fel. Matta i ok skick.

• Notera att nedmontering sker av köpare.

• Banorna kan nedmonteras och hämtas under januari månad 2025.

• Port i direkt anslutning till utomhusytan finns för lastning.
